EC520 is the new MACH cleaning machine dedicated to the cleaning of escalators and moving sidewalks.
Even more efficient and easier to operate, it replaced the previous EC510 as of September 2018. Improved functions, at the same price.
FAQ
  • How long does it take to clean an escalator with the EC52?

    The EC520 is extremely quick. With just one machine it’s possible to sweep and wash the steps of any escalator or moving sidewalk (also known as travellator, moving walkway or horizontal escalator). Once set up on the landing plate, with the brush deck positioned on the first step, the machine works autonomously, leaving the operator free to dedicate time to other tasks. The actual cleaning time depends on a number of factors, the level of dirt, the dimensions of the escalator steps (length and width) and the number of steps.

  • Can the EC520 clean the step risers and handrail?

    The EC520’s accessory kit contains a spray gun to prewash particularly dirty steps and a tool to carefully clean the risers. The kit is already included in the TOP version of the machine, but it is also possible to order these tools as an optional with the BASE version.

  • Which brand and model of escalators and moving walkways is the EC520 compatible with?

    Thanks to the double cylindrical brush system and Edge2Edge®, technology the EC520 can be used with escalators and moving-walkways of any brand and dimension. The only limit is the minimum step width, which can’t be less than 51cm, the width of the brush deck. However, escalators with such reduced dimensions are extremely rare.

  • During the cleaning, is there a risk that water can come into contact with the internal mechanisms of the escalator?

    No, the cleaning solution applied to the steps is a fine spray. The chemical action of the detergent and the mechanical action of the brushes quickly lift even the most stubborn debris, solid or liquid, which is then immediately vacuumed. After cleaning the steps are completely dry and ready for traffic.

MACH EC520 | Escalator cleaner

The EC520 cleans escalators and moving walkways using both a dry and wet cleaning cycle. It is ideal for both everyday cleaning and to remove engrained dirt and heavier marks.

The revolutionary double brush system guarantees results and once in position, the EC520 works automatically, leaving the operator free to dedicate their time to other tasks.

The new stainless-steel vacuum chamber, furthermore maximizes pick up of water, leaving the steps clean and dry.

The new solution and recovery tanks, with greater capacity, provide more cleaning time, reducing the need to stop and refill during operation and eliminating associated downtime.

The EC520 cleans escalators and moving-walkways, of any brand, with a width of 51cm or greater. It isn’t necessary to stop the escalator to clean with the EC520, and a cleaning cycle is completed in a matter of minutes.

Edge2Edge® technology guarantees perfect cleaning even at the edges of the steps. The brush deck, which rotates 180 degrees, is fitted with thin spacers, allowing it to be placed in direct contact with the escalator’s side panel.

Despite the multiple functions and high performance offered by the EC520, it remains a compact machine, making it easy to transport on its wheels and to be lifted via the pull-out handles.

Dry cleaning phase MACH EC520
Dry cleaning phase

The dry cycle, removes and vacuums small stones, dust, sand, and other small objects that can damage the internal mechanisms of an escalator.

Wet cleaning phase MACH EC520
Wet cleaning phase

Vaporizing a specially formulated substance, it’s possible to remove marks and stuck on dirt, such as fat residues, oil, drinks, and other dirt that isn’t eliminated in the dry cycle.

MACH EC520 | Edge2Edge® Technology
Edge2Edge® Technology

Close cleaning right up until the escalators balustrade, independent of the width of the steps.

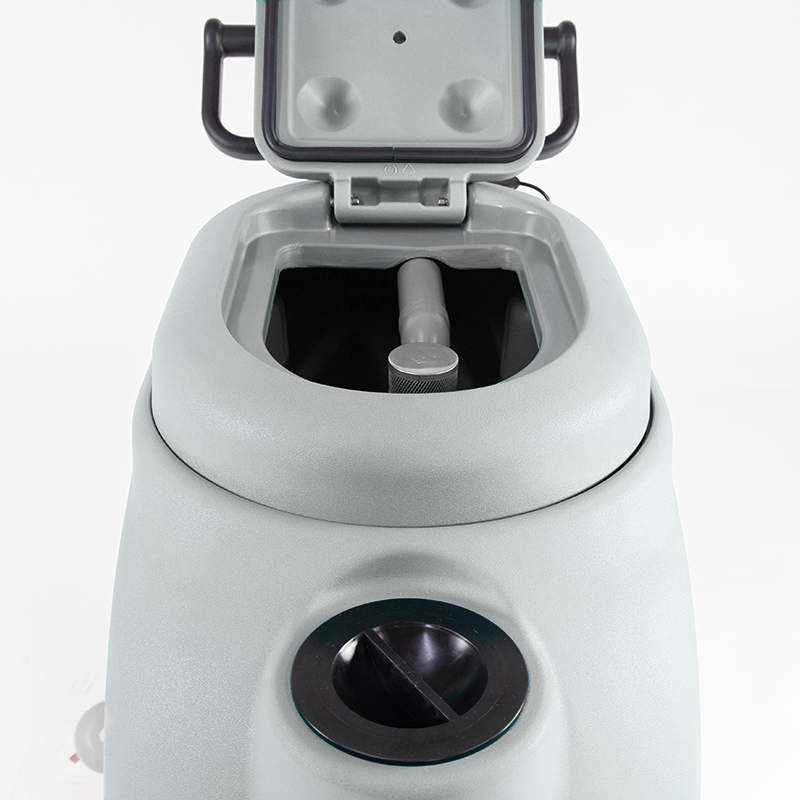

MACH EC520 | High capacity tanks, easy to inspect
High capacity tanks, easy to inspect

Extend up time and make cleaning the machine after operation simpler.

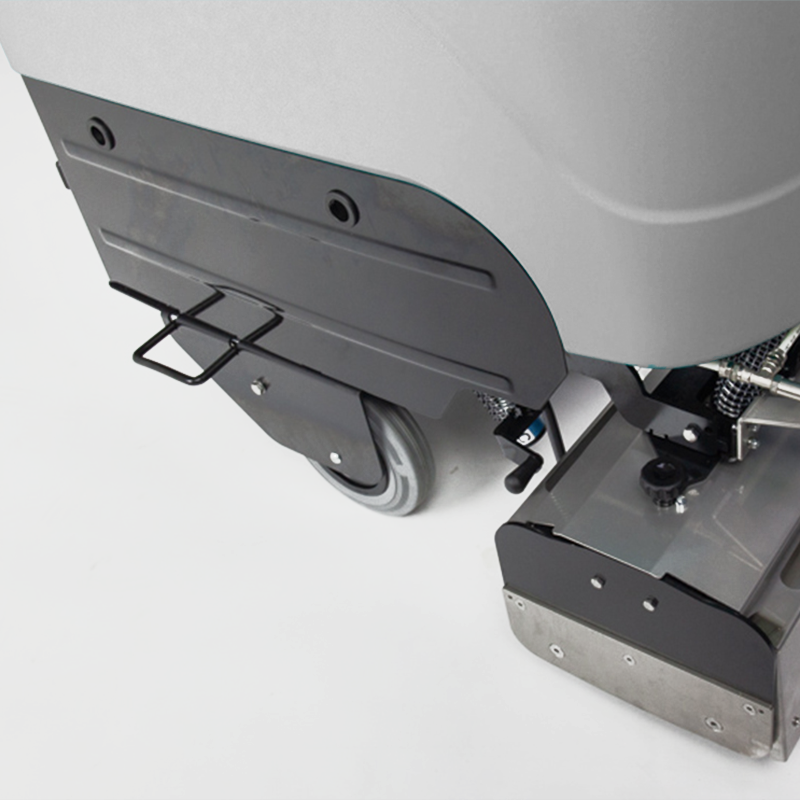

MACH EC520 | Lifting handles and wheels for transport
Lifting handles and wheels for transport

Agilely transport the machine to the work site, in any application.

MACH EC520 | Vacuum chamber in stainless steel
Vacuum chamber in stainless steel

The brush deck’s protective casing, in stainless steel, safeguards its components from accidental impact and creates an efficient vacuum chamber that guarantees complete pick up of water and debris.

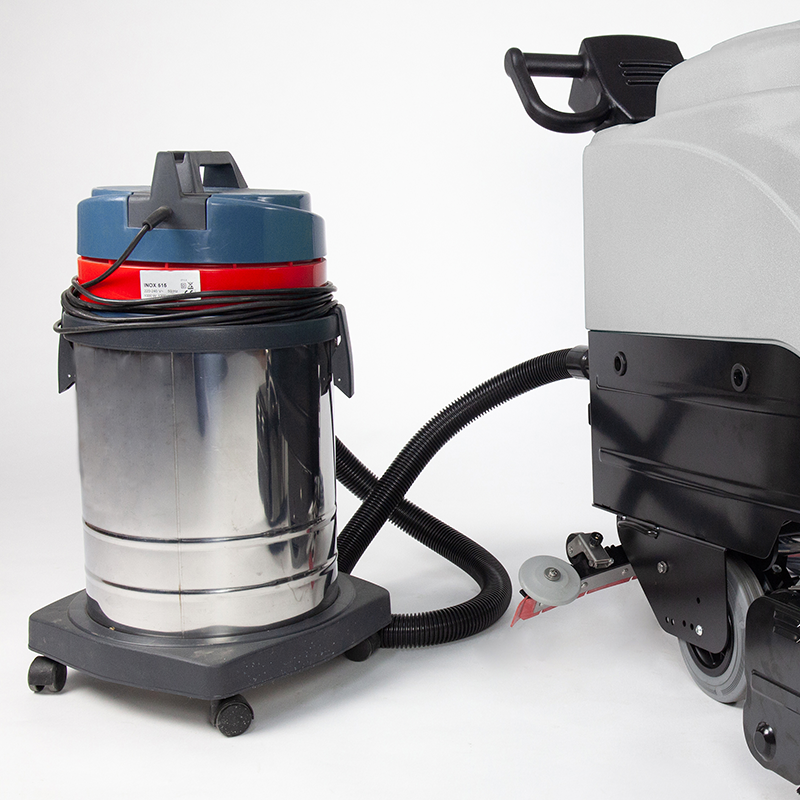

MACH EC520 with Optional auxiliary vacuum
Optional auxiliary vacuum

In particularly dusty environments the EC520 can be connected to an external vacuum.

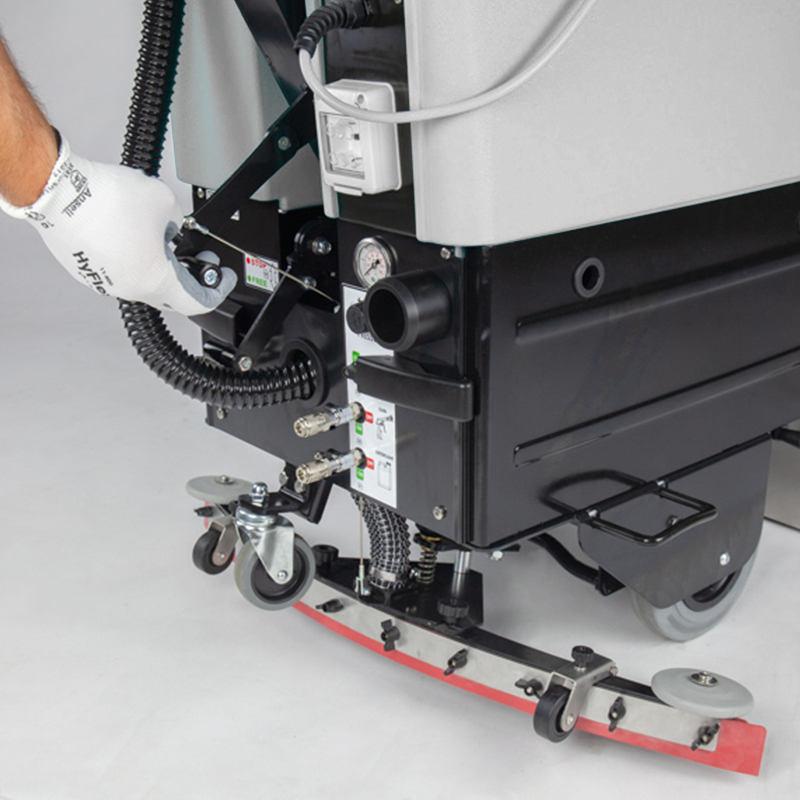

Scrubber-dryer squeegee MACH EC520
Scrubber-dryer squeegee

The EC520 TOP version includes a squeegee, making it possible to use the machine to scrub and dry small areas.

MACH EC520 | Brushes in PPL and TYNEX
Brushes in PPL and TYNEX

Interchangeable, according to the characteristics of the steps, the dirt, and the choice of cleaning mode.

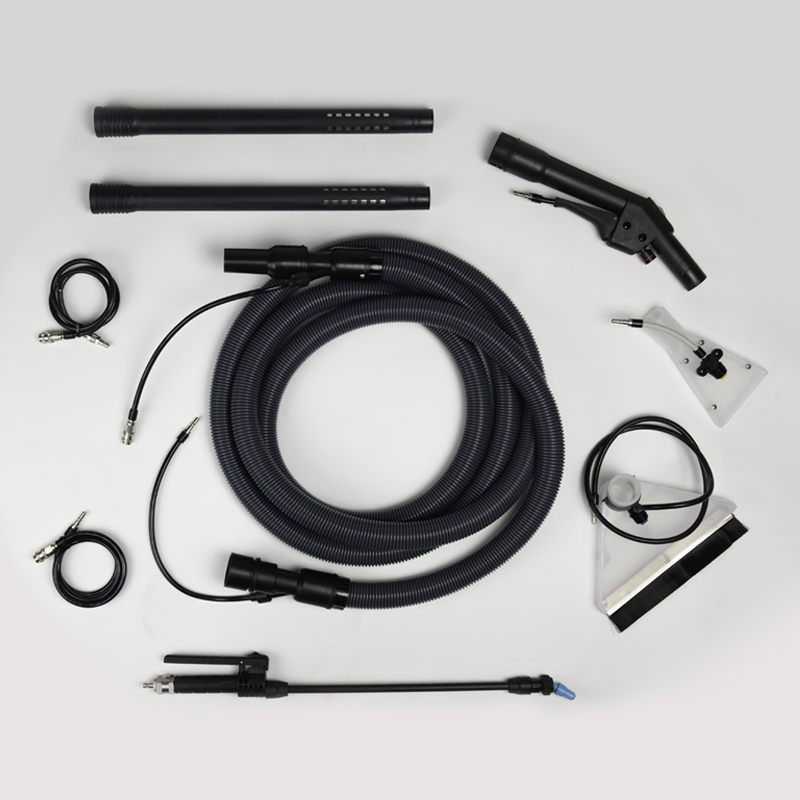

MACH EC520 | Complete accessory kit
Complete accessory kit

The kit includes a spray gun for the pre-wash stage, and a tool to clean the risers. The kit is standard for the TOP version or is available as an optional for the BASE version. The EC520 is the most complete, versatile, and competitive escalator cleaner on the market.

MACH EC520 | Work autonomously
Work autonomously

Once positioned, the machine works completely autonomously, and the user can therefore carry out other tasks in the vicinity, whilst supervising operation.

MACH EC520 - escalator and moving sidewalk cleanaer

APPLICATIONS:
Commercial centers, multistory car parks, subway systems, stations, airports, casinos, hotels and resorts, public and private buildings, supermarkets, theme parts, cruise ships, museums…

SURFACES
Escalators, moving sidewalks, moving walk ways, moving sidewalks, horizontal escalators, and small floor areas.

TECHNICAL SPECIFICATIONSEC520
Cleaning path510 mm / 20 in
Hourly performance1.000 m² / 10,764 ft² per hour
Solution tank capacity 35 L / 9.2 gal
Recovery tank capacity35 L / 9.2 gal
Motor230 V / 50-60 Hz
Brush motor900 W / 1.2 hp
Vacuum motor1.200 W / 1.6 hp
Water pick-up2.100 mm/H²O / 82.7 in/H²O
Brush diameter115 mm / 4.5 in
Squeegee length870 mm / 34.3 in
Brush speed400 rpm
Brush pressure30 kg / 66.1 lbs
Weight96 kg / 212 lbs
Dimensions – without squeegee (l x w x h) 1200 x 580 x 970 mm / 47.2 x 22.8 x 38.2 in
